Axis REAR WING - HIGH ASPECT

AXIS REAR WINGS - HIGH ASPECT 380, 400, 420 & 460

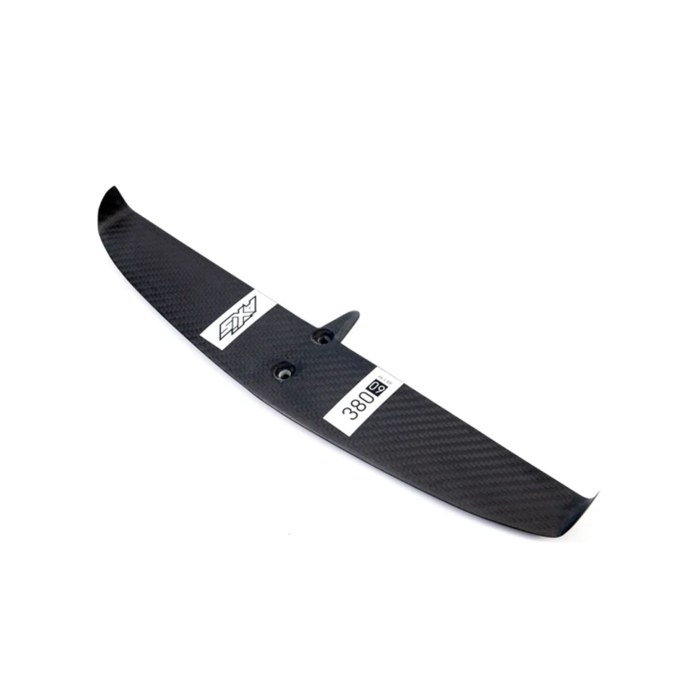

AXIS 380 REAR WING

Narrow (only 60mm chord), High Aspect Ratio 7.99AR, flatter foil section, and 17mm winglets on the tips for more stability while hard carving. FAST and high performance.

It will take your ride to the next level.

Some pros love the 380 with the AXIS PNG 910 and the Crazyshort fuselage. It's also an amazing winging rear wing. No matter what your foiling sport is, the 380 will make it fast.


AXIS 380 Rear Wing Specs

WINGSPAN: 380 mm / 14.96 in

CHORD: 60 mm / 2.36 in

ASPECT RATIO: 7.99

ACTUAL AREA : 193.04 cm² / 29.92 IN²

PROJECTED AREA: 180.62 cm² / 28 IN²

VOLUME: 69.11 cm³ / 4.22 IN³

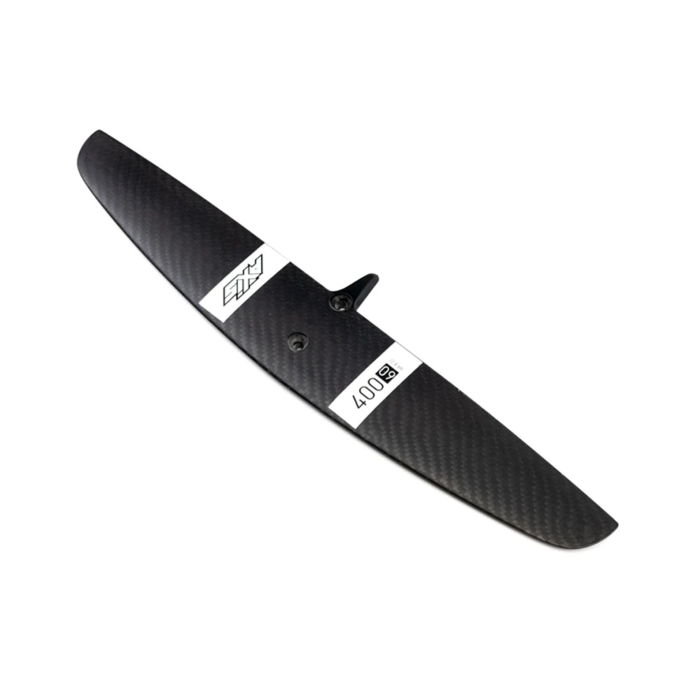

AXIS 400 HA Rear Wing

The AXIS Foils 400 HA Flat Carbon Rear Wing is one of Axis’s fastest rear wing, and the perfect companion to any of the Axis performance front wings.

At 8.22 Aspect Ratio, 60mm chord and flatter foil section, the 400 HA Flat Carbon Rear Wing is FAST, loose, and ideal for all high performance foiling. From prone, to winging, to SUP, to Downwind to Kite, to Pump. A great high performance rear wing for multiple uses.

AXIS 400 HA Rear Specs:

WINGSPAN: 400 mm / 15.75 in

CHORD: 60 mm / 2.36 in

ASPECT RATIO: 8.22

ACTUAL AREA : 196.24 cm² / 30.42 IN²

PROJECTED AREA: 194.66 cm² / 30.17 IN²

VOLUME: 70.77 cm³ / 4.32 IN³

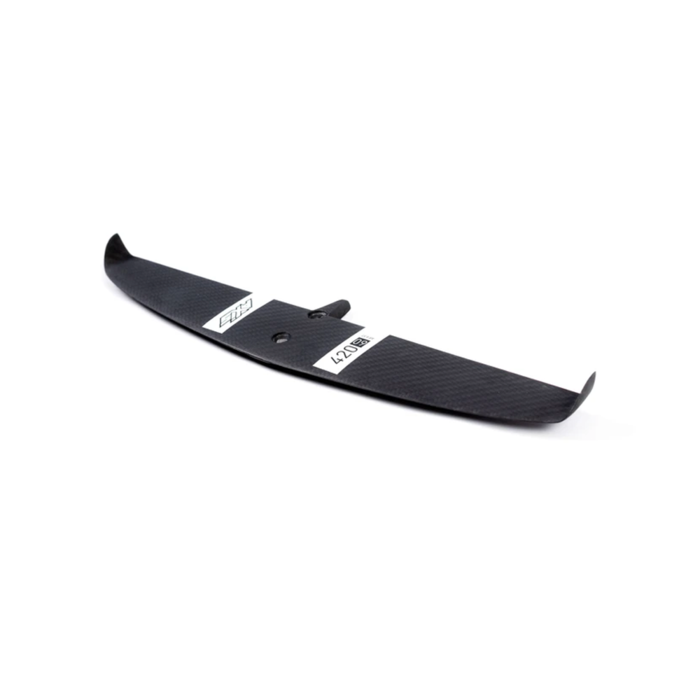

AXIS 420 REAR WING

Imagine a shorter version of the AXIS 460 rear wing, with winglets.

That's exactly what the 420 carbon rear wing is.

Our fastest rear wing to date, at 420mm wingspan, 60mm chord, and 8.7 Aspect Ratio. FAST. And with the winglets it provides good turning and carving control.

If you are a performance Prone, SUP, Wing or Downwind foiler, looking for the fastest setup, then the 420 is just your wing.

AXIS 420 Rear Wing Specs:

WINGSPAN: 420 mm / 16.54 in

CHORD: 60 mm / 2.36 in

ASPECT RATIO: 8.57

ACTUAL AREA : 212.63 cm² / 32.96 IN²

PROJECTED AREA: 205.76 cm² / 31.89 IN²

VOLUME: 76.95 cm³ / 4.70 IN³

AXIS Rear Wings - High Aspect

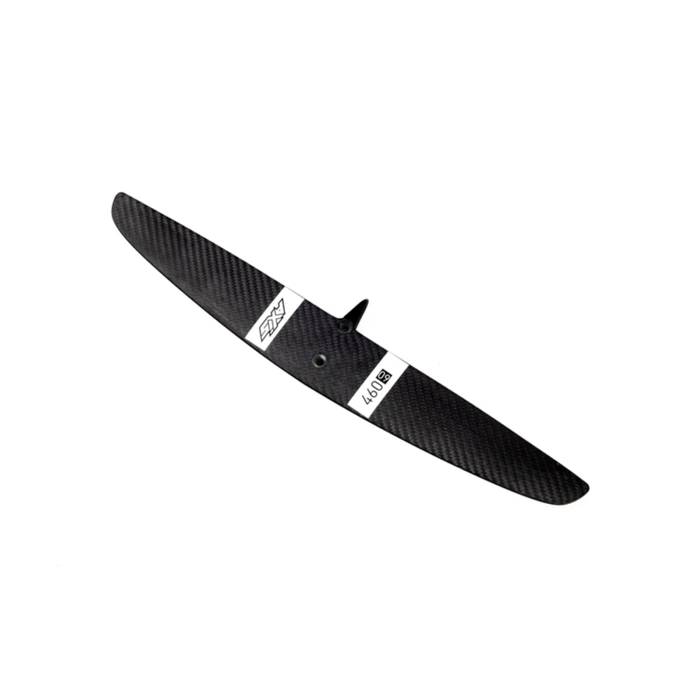

AXIS 460 REAR WING

The AXIS 460 Rear wing is our fastest rear wing, and the perfect companion to the 900, 1000 and 1010 front wings.

Its flat profile, 60mm chord and foil section, make the 460 Carbon Rear Wing ideal for high performance downwinding. Many Axis team riders also use the 460 for SUP, SURF, Wake and Pump foiling! A great high performance rear wing for multiple uses.

AXIS 460 Rear Wing Specs:

WINGSPAN: 460 mm / 18.11 in

CHORD: 60 mm / 2.36 in

ASPECT RATIO: 9.45

ACTUAL AREA : 227.2 cm² / 35.22 IN²

PROJECTED AREA: 223.87 cm² / 34.70 IN²

VOLUME: 81.39 cm³ / 4.97 IN³
